- Artikel-Nr.: JH-24774
Gold Note PH-10
Vielfach preisgekrönter Phonovorverstärker
Bei dem Modell PH-10 handelt es sich um einen extrem vielseitigen Phonoverstärker, der einige einzigartige Merkmale besitzt: zwei getrennt programmierbare Eingänge mit allen wichtigen Einstellmöglichkeiten wie Impedanz, Verstärkung & unterschiedlichen Entzerrungskurven. Eine echte Analogentwicklung, die ausschließlich mit den besten Bauteilen realisiert wird.
Für die Steuerung des PH-10 haben wir SKC entwickelt, eine einmalige Technologie, die zusammen mit dem TFT Bildschirm
alle Änderungen und Anpassungen mit einem einzigen Drehknopf schaltbar macht.
6 EQ Kurven einstellbar
Unter den im Display angezeigten Einstellungen für den Frequenzgang finden sich Kurven für sechs verschiedene Entzerrungen, so RIAA, Decca London, American, CBS, Columbia passend für alle alten und neuen Aufnahmen.
9 Lastwiderstände & 4 Verstärkungsstufen einstellbar
Zur Anpassung des Tonabnehmers stehen neun Impedanzen zur Auswahl: 10, 22, 47, 100, 220, 470, 1000Ω, 22 und 47kΩ.
Außerdem ist die Verstärkung in 3dB Schritten einstellbar. So kann die Phonostufe mit jedem MM- und MC-Tonabnehmer in bestmöglicher Einstellung betrieben werden.
2 voneinander unabhängige Phonoeingänge
Der Eingang ist doppelt vorhanden, so dass zwei Tonabnehmer bzw. Plattenspieler mit unabhängigen Anpassungen angeschlossen werden können.
Technische Daten

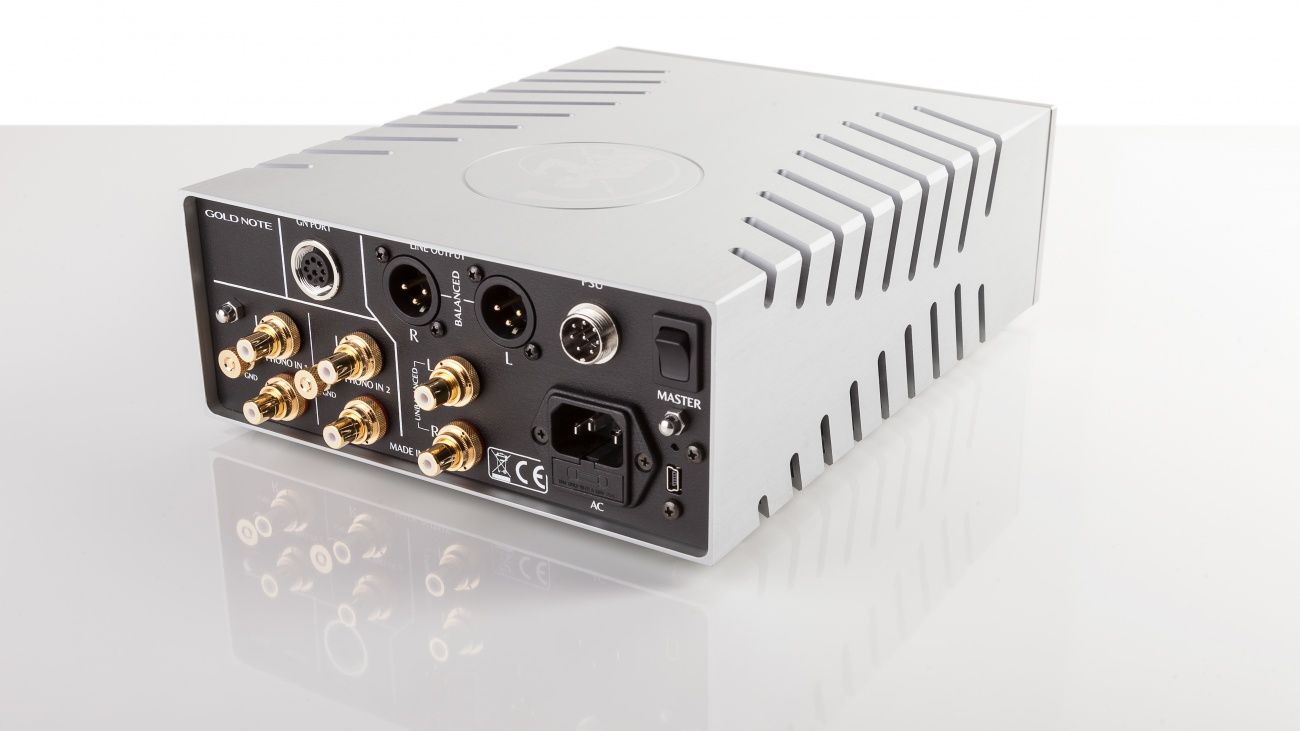

- Eingänge: 2x unabhängig RCA (Cinch) stereo
- Ausgangs-Innenwiderstand: 50Ω
- Subsonicfilter: 10Hz, 6. 0rdnung (36dB/oct.)
- Ausgangspegel: 2V (RCA, Cinch) bzw. 4V (XLR)
- Klirrverzerrungen: <0,05%
- Eingangsempfindlichkeit: 0,1mV (MC), 7mV (MM)
- Fremdspannungsabstand: -89dB
- Farbausführungen: schwarz, silber, gold
- Dynamikumfang: 105dB
- Abmessungen BxHxT: 220 x 80 x 260 mm
- Frequenzgang: 20Hz - 20kHz (enhanced bis 50kHz) +/-0,3dB
- Gewicht: 4kg
From a very young age the passion for music and its instruments of reproduction have marked my life so much to condition every choice I made. I desired to be able to offer the greater audience ideas and technical potentials with an all-Italian brand specialized in Hi-Fi created by a team with years of experience in the field.
In 2012, with my wife Elena, my partner Alessio and a team of specialized technicians and engineers I founded GOLD NOTE, profiting from previous work experiences in the same industry. Together we created a High-End audio brand which since the start wanted to speak a simple but evocative language in order to bring the best of “Made in Italy” to the whole world.
In my opinion, one of the greatest peculiarities of this brand is its “double glance”, our business vision which in some ways is directed to the past, but at the same time to the future. On the outside, this approach is expressed by forms we give to our creations which prove a strong references to the artistic history of Tuscany though representing our point of view on the future of quality listening. The same thing is true on the inside of our products which are designed based on the cornerstone elements of the audiofile tradition but introducing new features and using components of information technology unknown to these kind of products until recently.
The spirit of our audio equipment stems from the fusion of past and future. This means that we don’t see a contradiction in combining avant-garde technological innovations with a design that seeks ties with tradition.
The Renaissance of our city Florence is a role model to be inspired by every day, a period of great technological innovation and new ideas, and this is the tradition we are interested in - it is our mission to reread it with deference and respect to obtain a direct connection with that innovative spirit of six centuries ago.
Today Gold Note presents a line of unique, perfectly coherent and elegant products that allow you to set up an entire quality stereo system with turntables, electronics and loudspeakers. A philosophy that has allowed us to represent Italy, the most beautiful country in the world, as I have always dreamed of doing.
