Teac TN-175 - vollautomatischer Plattenspieler

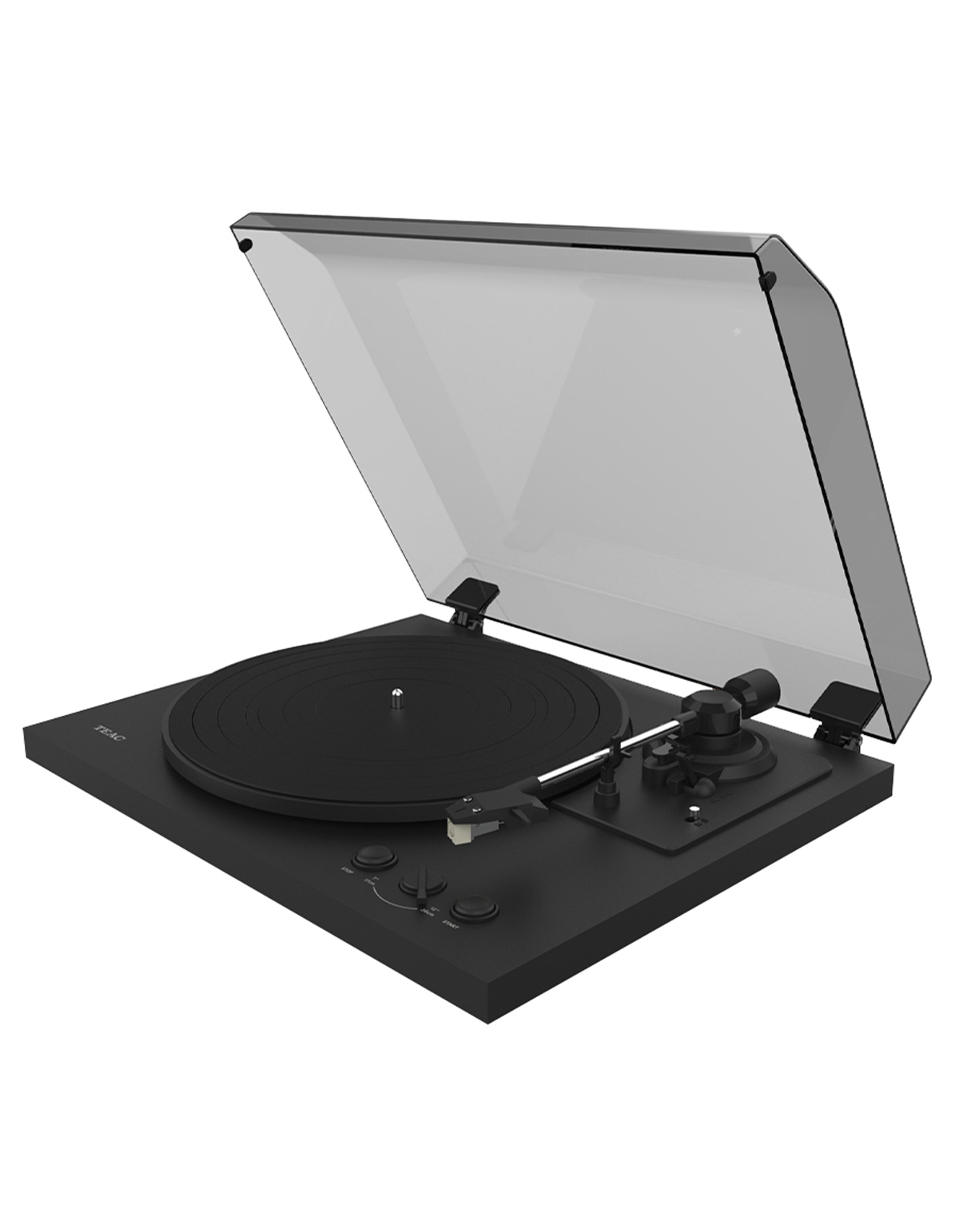

Teac TN-175

2 speed Full Automatic Analog Turntable with Phono EQ

Main Features

• 2 speed Full Automatic Belt drive turntable supporting 33/45 rpm
• Static balanced straight tonearm
• Built in MM type Phono equalizing amplifier and Phono and Line outputs
• VM(MM) type cartridge AT3600L by audio-technica pre-installed
• High Quality MDF cabinet for improved resonance reduction
• Sleek design in black

2-speed Turntable with Full-Automatic operation

The TN-175 plays LP, EP records. The tone-arm automatically moves to play the vinyl and returns to the original position as playback finished. A VM(MM)-type cartridge AT3600L by audio-technica is pre-installed to the static-balanced straight tonearm at the factory, so you can start playing records as soon as you open the box.

High-Quality MDF cabinet construction

Unlike others with plastic chassis, a single wooden board with MDF minimizes vibrations and resonance to playback of your vinyl record library with clearer sound.

Built-in MM-type Phono EQ amplifier

Enjoy vinyl playback with any amplifier regardless of the type of inputs. The TN-175 supports both Phono and Line output that allows you to play vinyl with or without a Phono pre-amp.

Specifications

TURNTABLE section

• Type Belt Drive
• Motor DC Motor
• Rotation Speeds 33-1/3, 45 rpm
• Wow-and-Flutters 0.2% or less
• Signal-to-Noise Ratio more than 67 dB or higher (A-weighted, 20kHz, LPF)
• Turntable (Platter)
• Material molded resin
• Diameter 290mm(11 1/2”) diameter

Tone-arm section

• Type Static-balanced straight tonearm
• Effective Arm Length 207.9mm
• Tracking force 3.5g

Cartridge sections

• Type VM (equivalent to MM)
• Output Voltage 3.5mV (1kHz, 5cm/s)
• Tracking force 3.5±0.5g
• Cartridge weight 5±0.3g
• Included head-shell weight 10g (including screws, nuts and wires)

Output voltage section

• PHONO EQ THRU 2.5mV
• PHONO EQ ON 150mV
• Output connectors RCA

General

• Ac adaptor power
• Input AC 100 V- AC 240V, 50-60 Hz
• Output DC 12V, 500 mA
• Power consumption
• Standby 0.2W or less
• On (START) 6.0 W or less
• Weight (Net) 3.5 kg (7 3/4 lb)
• Dimension (W x H x D) 420 x 105 x 355mm (16.5” x 4.1” x 14” )

Included Accessories

• Rubber Mat x 1
• EP Adapter x 1
• VM(MM)-type Cartridge AT3600L x 1 (Pre-installed)
• Dust Cover x 1
• Dust Cover Hinges x 2
• RCA Audio Cable x 1
• AC Adapter (GPE053A-V120050-Z) x 1
• Owner’s Manual
