Line Magnetic LM-503PA - Röhren Mono Endstufe

10.990,00 € *

inkl. MwSt. - Infos zu Versandkosten und Bedingungen

Lieferzeit: 10 - 14 Werktage

  • JH-28494
Fragen zum Artikel?
Line Magnetic LM-503PA Der LM-503PA Mono-Endverstärker wurde von einem Western Electric... mehr
Produktinformationen "Line Magnetic LM-503PA - Röhren Mono Endstufe"

Line Magnetic LM-503PA

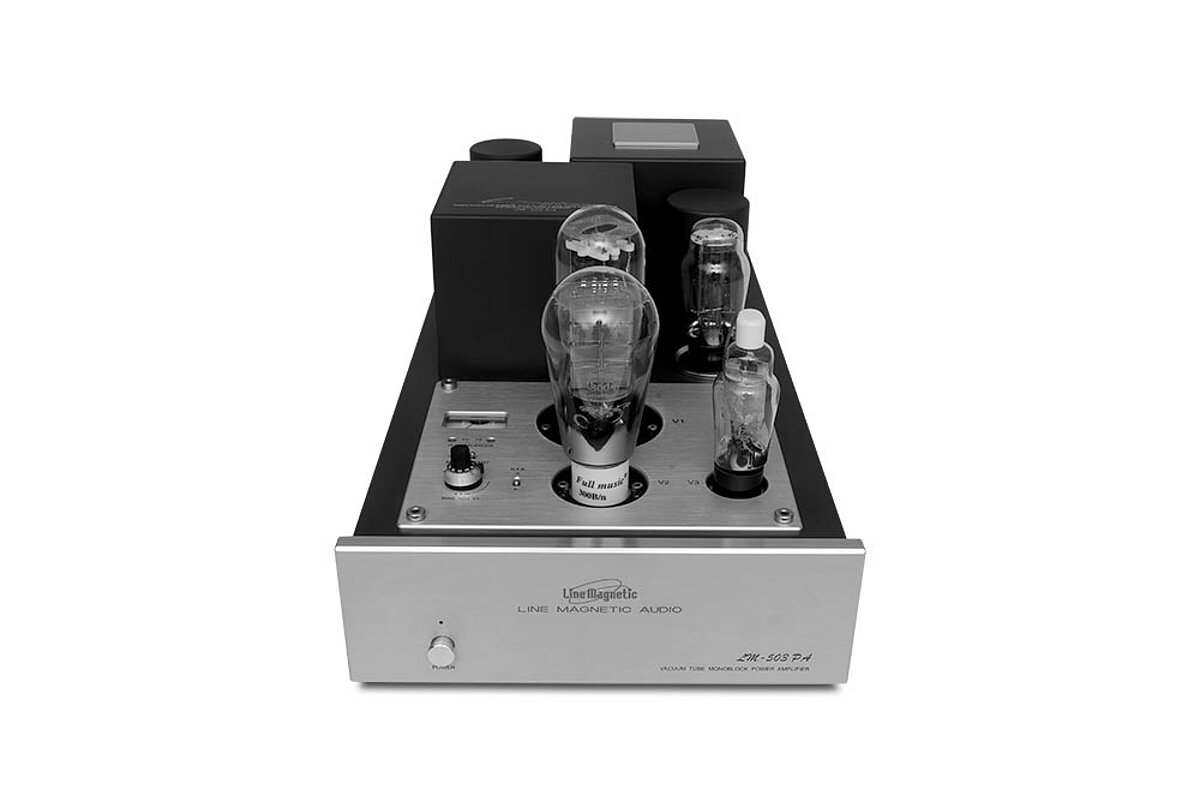

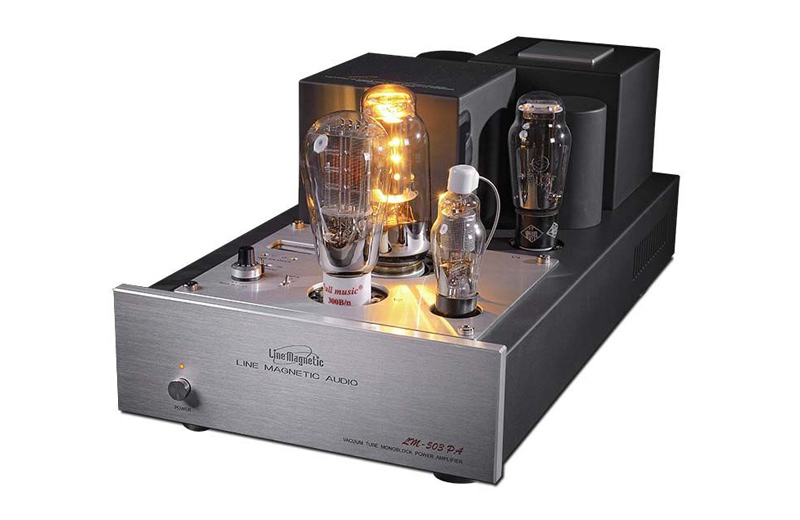

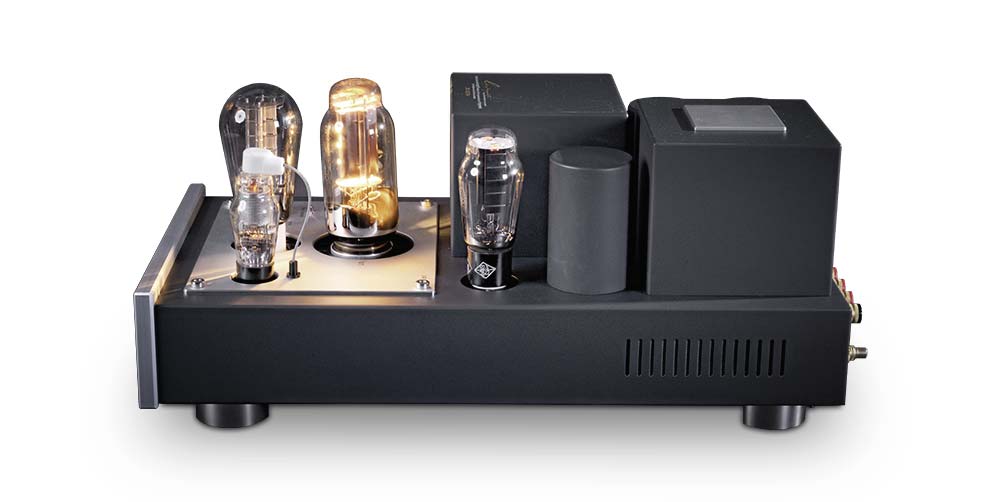

Der LM-503PA Mono-Endverstärker wurde von einem Western Electric Originaldesign inspiriert. Er verwendet eine Single-Ended-845-Ausgangsstufe mit einem 300B-Treiber und einem 5U3C-Gleichrichter. In der Vorverstärkerstufe kommt eine spezielle Line-Magnetic-Röhre, die 310A, zum Einsatz.

Die Stromleitung wird durch zwei spezielle Drosseln gefiltert. Die Vorspannung für die Röhre 845 lässt sich mit einem speziellen Vu-Meter auf der oberen Platte leicht einstellen.

Die Mono-Endstufe LM-503PA wurde im März 2017 mit dem deutschen Red Dot Award ausgezeichnet. Diese Auszeichnung wird inoffiziell als "Oscar für internationales Industriedesign" bezeichnet, womit dieser Verstärker zu den besten der Welt zählt.

VERWENDETE RÖHREN

  • Eingangsstufe: 1x 310A
  • Gleichrichter: 1x 5U3C
  • Treiber: 1x 300B
  • Endstufe: 1x 845

MERKMALE

  • Handgefertigte Konstruktion mit feinster Punkt-zu-Punkt-Verdrahtung
  • SoftStart und Zeitverzögerungsschaltung - 30 Sekunden
  • Speziell entwickelter EI-Transformator für die Spannungsversorgung
  • Zwei EI-Ausgangstransformatoren mit großer Bandbreite

Technische Daten

  • Allgemeine Beschreibung Class-A-Verstärker - 1x 24W RMS
  • Klirrfaktor 1% (1kHz)
  • Signal/Rausch-Verhältnis 87dB (gewichtetes A)
  • Frequenzgang 15 - 35.000 Hz (-1,5 dB)
  • Empfindlichkeit 1000 mV
  • Eingangsimpedanz 100kΩ
  • Lastimpedanz 4/8/16Ω

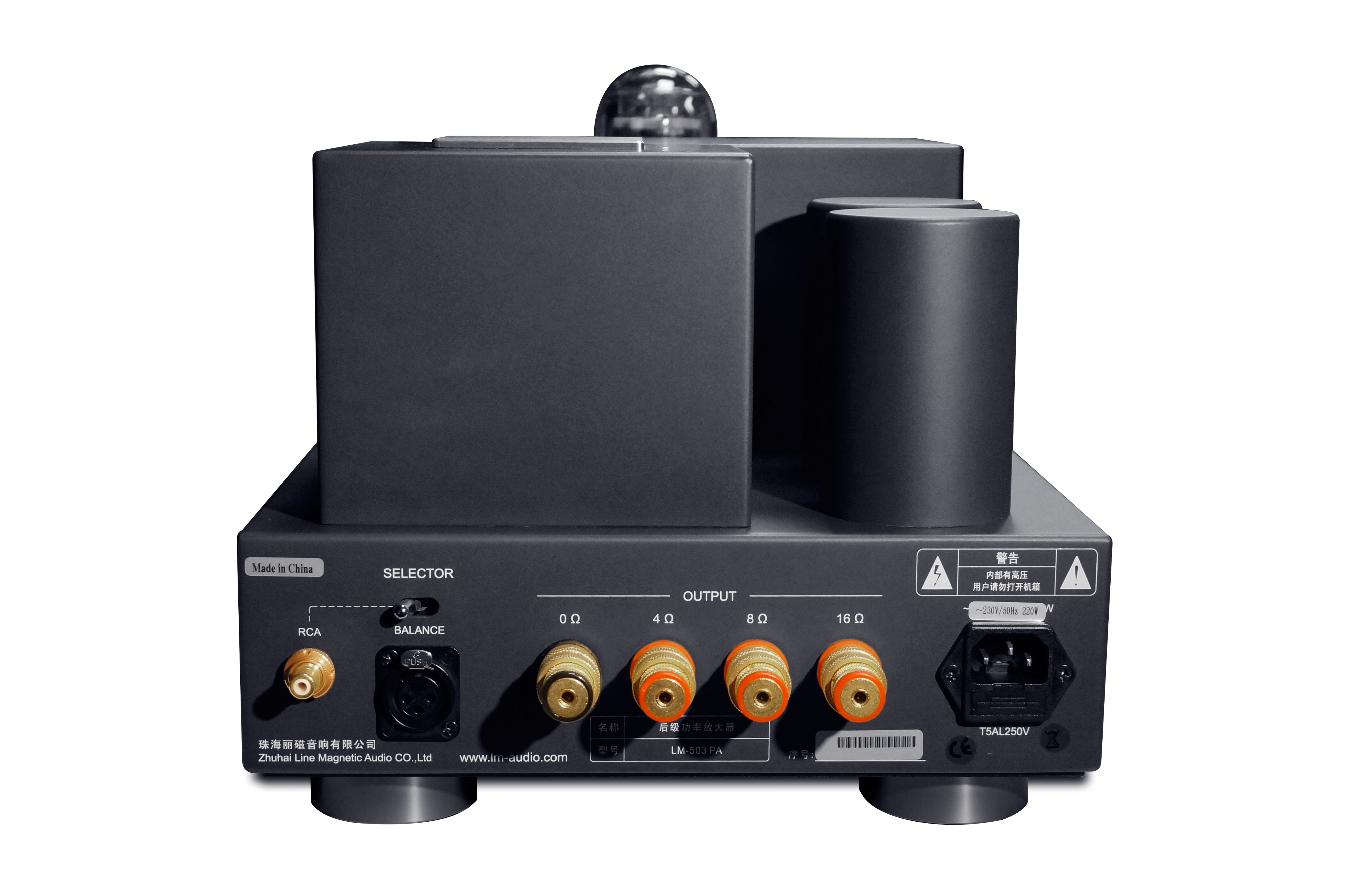

  • Steckverbinder
    • 1x Line-Eingang Cinch
    • 1x Line-Eingang XLR
    • 1x Schraubklemmen kompatibel mit Bananensteckern
  • Abmessungen (B x H x T) 287 x 279 x 574 mm
  • Gewicht 30 kg
