- Artikel-Nr.: JH-24773.1

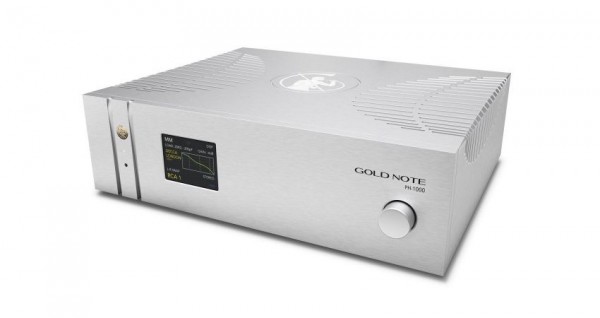

Gold Note PH-1000
Hier kommt ein echter „Game-Changer“, der eine neue Ära in der Vinyl-Reproduktion einleitet. Der PH-1000 ist die fortschrittlichste Phono-Stufe, die Gold Note je entwickelt hat. Die spezielle Schaltung des PH-1000 ist mit edelsten, selektiven Bauteilen in Class A Technologie ausgelegt Weiterhin verfügt er über einen Kopfhörerausgang in Class A Schaltung, 3 unabhängige Phonoeingänge – 2x Cinch u. 1x XLR sowie optional einen Lineeingang. 40 vorprogrammierte + 4 manuell einstellbare, benutzerdefinierte EQ-Kurven sowie 7 Gain- und 12 Load-Einstellungen und 6 Kapazitätsoptionen für MM-Tonabnehmer machen die PH-1000 zum idealen Spielpartner für alle Tonabnehmer. Über das TFT-Farbdisplay auf der Vorderseite können Sie sämtliche Einstelloptionen ablesen sowie während der Musikwiedergabe bequem über den Drehknopf oder die mitgelieferte Fernbedienung individuell verändern.
Technische Daten
- Frequenzgang: 20Hz – 20KHz
- EQ Kurven: +40 EQ Voreinstellungen, 4 benutzerdefinierte Setup, @ +/- 0.3dB max.
- THD (Total Harmonic Distortion): <0.01% MAX
- Signal-Rausch Verhältnis: -100dB
- Dynamikbereich: -110dB
- Ausgangsimpendanz: 50Ω
- Subsonic-Filter: 10Hz/36dB octave (ON/ OFF)
- Mono/Stereo: Stereo, Stereo 180°, Mono, Mono 180°, Mono L
- Kanalwechsel: R/L, L/R
- Infrarot Empfänger: Für Systemfernbedienung
- Audio-Ausgänge:
- 1x RCA 1Volt
- 1x XLR 4Volt
- 1x Ausgang für optionale Anbindung von TUBE-1012 oder TUBE-1006
- Netzanschluss:
- Kanalgetrennte Stromversorgung 100-240V mit automatischer Selektion
- Leistungsaufnahme: 30W
- Netzteileingang optional über Gold Note PSU-1250 oder PSU-1000
- Phono-Eingänge:
- 2x RCA (0.1mV MC bis zu 8.0mV MM)
- 1x XLR (0.1mV MC bis zu 8.0mV MM)
- Widerstandsanpassung: 12 Optionen [100KΩ, 75KΩ, 47KΩ, 33KΩ, 22KΩ, 1KΩ, 470Ω, 220Ω, 100Ω, 47Ω, 22Ω,10Ω]
- Kapazitätsanpassung MM: 100pF, 150pF, 220pF, 330pF, 470pF, 1000pF
- Verstärkung:
- 65dB MC, 40dB MM mit 7 Optionen [-9dB, -6dB, -3dB, 0dB, +3dB, +6dB, +9dB]
- RCA IN 1: PHONO stereo fest
- RCA IN 2: PHONO stereo fest
- RCA IN 3: EXTERNAL LOAD/LINE stereo fest
- XLR IN 1: PHONO stereo regelbar
- XLR IN 2: EXTERNAL LOAD/LINE stereo regelbar
- Maße & Gewicht:
- Maße B | 135mm H | 375mm T
- 12Kg
From a very young age the passion for music and its instruments of reproduction have marked my life so much to condition every choice I made. I desired to be able to offer the greater audience ideas and technical potentials with an all-Italian brand specialized in Hi-Fi created by a team with years of experience in the field.
In 2012, with my wife Elena, my partner Alessio and a team of specialized technicians and engineers I founded GOLD NOTE, profiting from previous work experiences in the same industry. Together we created a High-End audio brand which since the start wanted to speak a simple but evocative language in order to bring the best of “Made in Italy” to the whole world.
In my opinion, one of the greatest peculiarities of this brand is its “double glance”, our business vision which in some ways is directed to the past, but at the same time to the future. On the outside, this approach is expressed by forms we give to our creations which prove a strong references to the artistic history of Tuscany though representing our point of view on the future of quality listening. The same thing is true on the inside of our products which are designed based on the cornerstone elements of the audiofile tradition but introducing new features and using components of information technology unknown to these kind of products until recently.
The spirit of our audio equipment stems from the fusion of past and future. This means that we don’t see a contradiction in combining avant-garde technological innovations with a design that seeks ties with tradition.
The Renaissance of our city Florence is a role model to be inspired by every day, a period of great technological innovation and new ideas, and this is the tradition we are interested in - it is our mission to reread it with deference and respect to obtain a direct connection with that innovative spirit of six centuries ago.
Today Gold Note presents a line of unique, perfectly coherent and elegant products that allow you to set up an entire quality stereo system with turntables, electronics and loudspeakers. A philosophy that has allowed us to represent Italy, the most beautiful country in the world, as I have always dreamed of doing.
