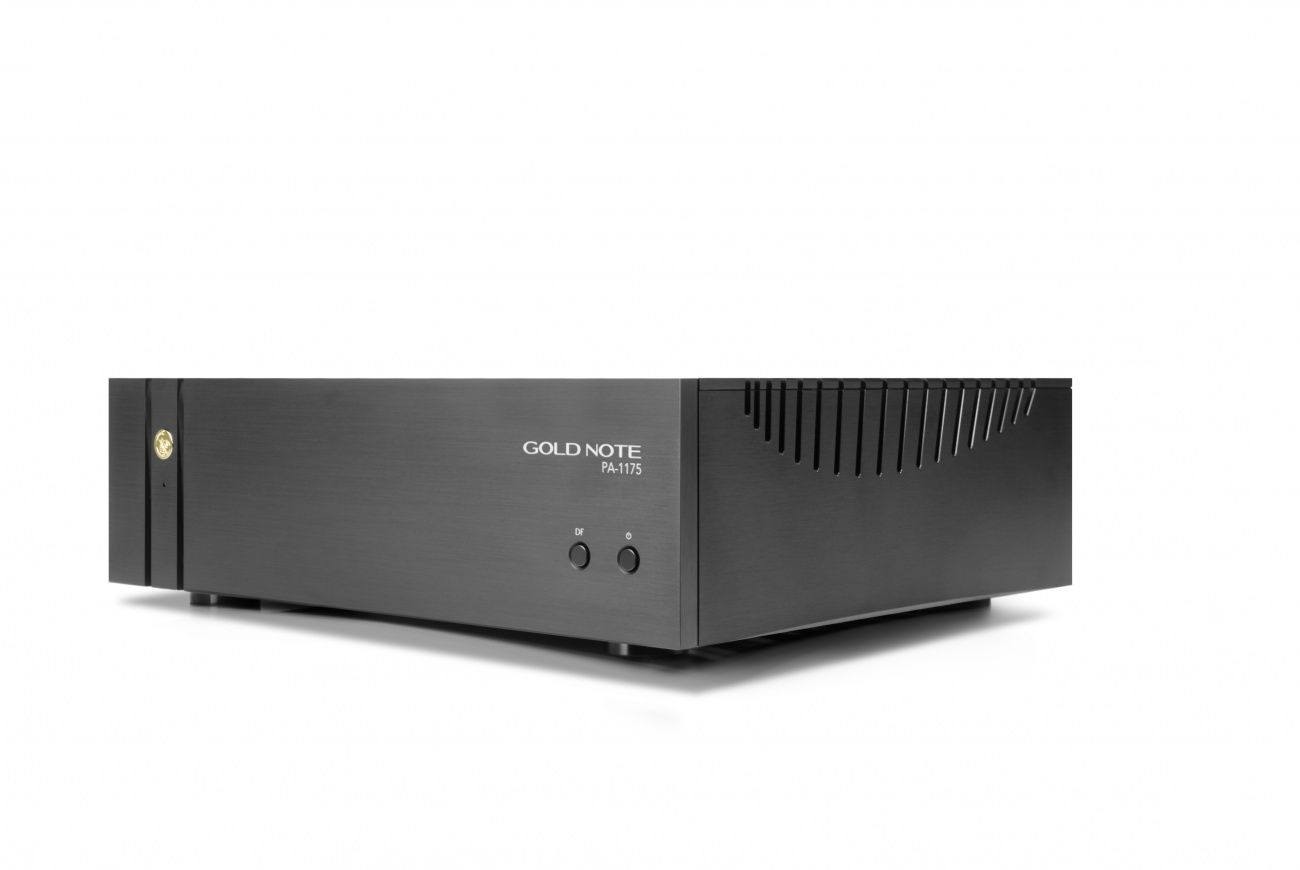

Gold Note PA-1175 MK-II
Eine zeitgemäße Endstufe
Das Modell PA-1175 ist unsere erste Leistungsendstufe: ein neuer Entwurf mit 4 ausgemessenen Paaren Endtransistoren pro Kanal und hauseigenem Gold Note Optical Bias sowie Konstantstromquellen um hohe Ausgangsströme bei äußerst niedrigen Verzerrungen liefern zu können. Diese eigens für unsere Zwecke entwickelte Bias Einrichtung kontrolliert die Bezugsspannung der Endstufe. Durch die optische Entkopplung werden die schlecht wirksamen Eigenschaften üblicher Schaltungen vermieden. Zu diesem Zweck wird das Signal analysiert - aber komplett unabhängig vom eigentlichen Signalweg, so ergeben sich hohe Betriebssicherheit und unschlagbare Leistungsdaten. Für perfekte Abschirmung gegen Störstrahlung hat die PA-1175 ein massives Eisenchassis, welches mit kräftigen Aluminiumtafeln verkleidet ist.
Die BTL-Technik (Bridge-Tied-Load) erlaubt die Brückenschaltung einer Stereoendstufe für Monobetrieb mit einer Verdopplung der ohnehin schon hohen Ausgangsleistung von 175W an 8Ω auf stolze 350W. Dadurch wird die Flexibilität der Anwendung einer PA-1175 erhöht, falls man einmal Lautsprecher mit extremem Leistungshunger angemessen und sauber betreiben will. Die Stromversorgung wird von einem Spezial-Ringkerntrafo mit 630VA beherrscht, der einen speziellen Schnitt des Magneteisens hat: in einem hochentwickelten Herstellungsprozess gelangt man zu einem vollkommen stabilen Kern mit hervorragendenEigenschaften ohne mechanische Vibrationen. Zusätzlich ist der Transformator auf original Ducati Schwingungsabsorbern montiert. Ein kleiner Hilfstransformator speist die Nebenfunktionen völlig getrennt von den signalverarbeitenden Teilen der Endstufe.
Einstellbarer Dämpfungsfaktor
Eine einzigartige Funktion der PA-1175 ist der einstellbare Dämpfungsfaktor. Er kann einfach an der Frontplatte zwischen 25 und 250 verstellt werden. Mit Hilfe dieses Features ist die Kontrolle der unterschiedlichsten Lasten möglich: Faktor 250 zum Beispiel für große, schwierig anzusteuernde Lautsprecher und Dämpfung 25 etwa für wirkungsgradstarke Breitbandlautsprecher, die man gewöhnlich mit einem Röhrenverstärker betreiben würde.
Technische Daten
- Ausgangsleistung: 2x 175W an 8Ω, 350W in Mono Brückensch.
- Eingangsempfindlichkeit RCA (Cinch): 1V
- Frequenzgang: 1Hz - 100 kHz +/-1dB
- Eingangsempfindlichkeit XLR: 4V
- Klirrverzerrungen: <0,01% von 20Hz / 20 kHz
- Eingangswiderstand: 47kΩ
- Fremdspannungsabstand: -110dB
- Leistungsaufnahme: max. 800W, <1W im Standby
- Dämpfungsfaktor: umschaltbar 25 / 250
- Netzanschluss: 100 - 245V Wechselspannung, 50/60Hz
- Slew Rate: 20V/μs
- Farbausführungen: schwarz, silber
- Transformatoren: 2x 630VA Spezial-Ringkerntransformatoren
- Abmessungen BxHxT: 430 x 135 x 370 mm
- Gewicht: 22kg
