Atlas Mavros XLR AES/EBU

Atlas Mavros XLR AES/EBU
355,80 € *

inkl. MwSt. - Infos zu Versandkosten

Lieferzeit: 4 - 7 Werktage

Länge:

  • JH-24879
Fragen zum Artikel?
Atlas Mavros XLR AES/EBU A true reference class balanced 110 Ohm digital cable. The Mavros... mehr
Produktinformationen "Atlas Mavros XLR AES/EBU"

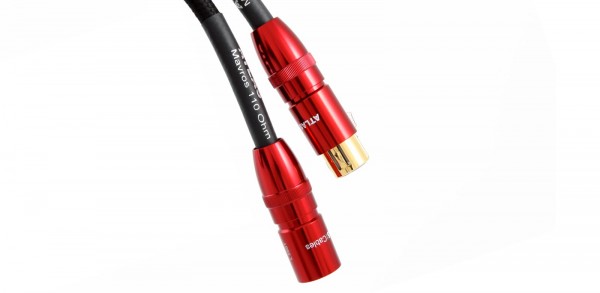

Atlas Mavros XLR AES/EBU

A true reference class balanced 110 Ohm digital cable.

The Mavros AES/EBU cable is engineered as a cable with extremely precise transmission and termination standards, incorporating the same microporous PTFE (Teflon™) dielectric insulation as the other Mavros interconnects.

The centre conductor is comprised of a monofilament conductor and 18 strands of super pure copper wire insulated by a thin layer of microporous PTFE. This new dielectric behaves almost like the theoretically perfect insulator –free air – with minimal effect upon the signal being transmitted. The previous highest performance insulator, solid PTFE, has a dielectric constant of around 2.1 whilst the new PTFE (Teflon™) foam improves this figure to around 1.5, providing for a 30% greater signal velocity and better signal integrity, particularly in the area of high frequency timing and stability.

The co-axial double shielding layers are an aluminium Mylar™ foil followed by OFC (Oxygen Free Copper) braiding after which the whole cable is protected by a PVC jacket damped with cotton yarn.

With a consistent termination impedance, the Mavros AES/EBU interconnect perfectly matches professional and semi-pre digital audio equipment to ensure error-free transmission of high speed digital signals. The result is evident in the timing and dynamic range of musical performances where the temporal ‘smearing’ of lesser cables is absent.

Specifications

  • Construction Symmetrical + Screen (19/0.2)
  • Material Silver Plated OFC
  • Dielectric Microporous PTFE (Teflon™)
  • Screen Braid OFC
  • Capacitance 41.27 pF/m
  • Inductance 0.728 µH/m
  • Resistance 0.0029 Ohms/m
  • Impedance 115.96 Ohm (300kHz)
  • Outside Diameter 8 mm
