- Artikel-Nr.: JH-22637

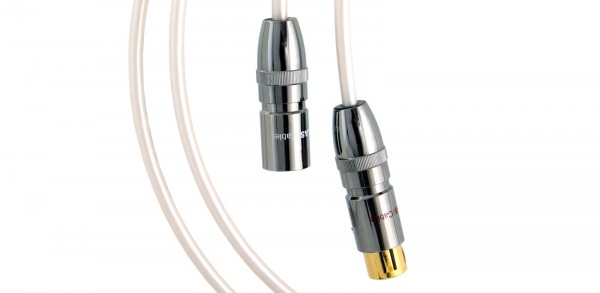

ATLAS Element XLR
Based on our multi-award winning Element Integra interconnect, the Element XLR utilises a shielded four-core construction providing excellent immunity to interference and noise, making it ideally suited to longer cable runs.
A symmetrical interconnect with a neutral sound, designed to be an excellent foundation for balanced system configurations.
Atlas use cold-weld terminations wherever possible, including our current generation ‘dark Chrome’ XLR connectors. By reducing the number of materials and break points in the signal path, our objective its to minimise discontinuity and loss in the signal path, resulting in more consistent construction and improved audio performance.
NB. Atlas XLR plugs are wired as follows by default:
Pin 1 = Ground; Pin 2 = Hot, Pin 3 = Cold. If you require a different configuration, please contact us. Always check with your equipment manufacturer’s instructions before ordering.
Specifications
Construction | 4 core plus screen |
Material | OFC |
Dielectric | XLPE |
Screen | Braid OFC, 90% |
Capacitance | 63.03 pF/m |
Inductance | 0.3735 µH/m |
Resistance | 0.1612Ohms/m |
Impedance | 77.05 Ohms/m |
Outside Diameter | 6.0mm |
