Atlas Element Mezzo XLR

Atlas Element Mezzo XLR

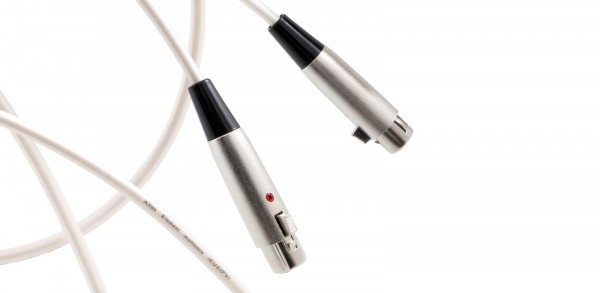

Based on our highly regarded Element XLR interconnect, the Element Mezzo XLR has been designed to meet the increasingly popular requirement for a cost-effective balanced cable with very little compromise in performance. The actual cable itself is identical, but the Mezzo uses a copper alloy body and pins as opposed to the high-purity OFC pins and aluminium alloy bodied plug of the Element XLR.

A very well-screened interconnect for this price point, with excellent resistance to RFI (Radio Frequency Interference), helping to ensure low noise levels and a neutral sound.

NB. Atlas XLR plugs are wired as follows by default:
Pin 1 = Ground; Pin 2 = Hot, Pin 3 = Cold. If you require a different configuration, please contact us. Always check with your equipment manufacturer’s instructions before ordering.

Specifications

• Construction 4 core plus screen
• Material OFC
• Dielectric PEF
• Screen Braid OFC, 85%
• Capacitance 83.34 pF/m
• Inductance 0.512 µH/m
• Resistance 0. 0810 Ohms/m
• Outside Diameter 6.5mm
