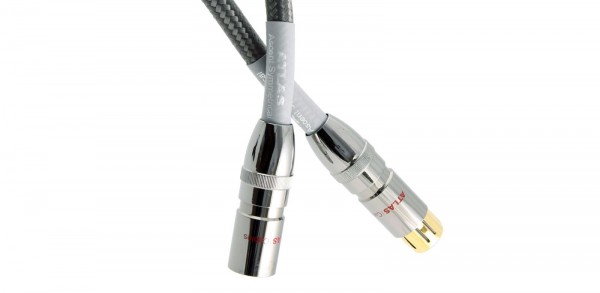

ATLAS Ascent XLR
A symmetrical wide-band, dynamic interconnect, designed to be an high performance choice for balanced system configurations.
Ascent XLR offers superb performance with true ‘high-end’ levels of transparency.
Atlas use cold-weld terminations wherever possible, including our current generation ‘dark Chrome’ XLR connectors. By reducing the number of materials and break points in the signal path, our objective its to minimise discontinuity and loss in the signal path, resulting in more consistent construction and improved audio performance.
NB. Atlas XLR plugs are wired as follows by default:
Pin 1 = Ground; Pin 2 = Hot, Pin 3 = Cold. If you require a different configuration, please contact us. Always check with your equipment manufacturer’s instructions before ordering.
Specifications
Construction | Twin multicore plus screen |
Material | OCC |
Dielectric | PEF |
Screen | N/A |
Capacitance | 98.45 pF/m |
Inductance | 0.562 µH/m |
Resistance | 0.0288 Ohm/m |
VOP | 0.72 |
Outside Diameter | 9 |
